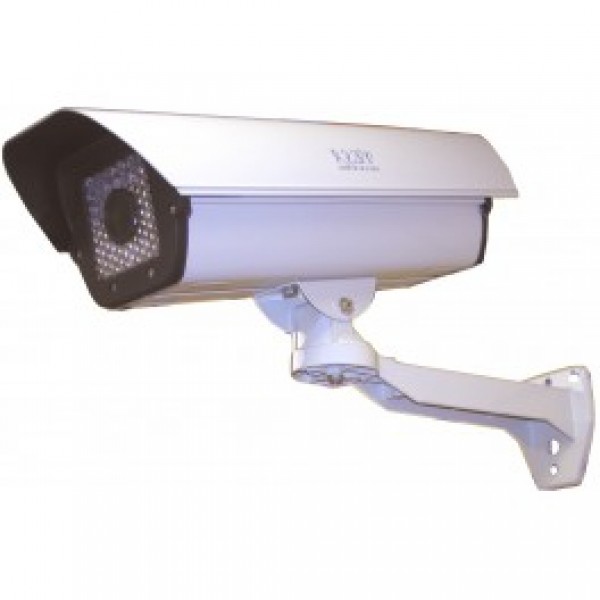

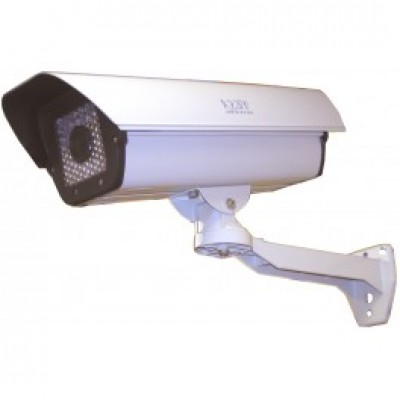

YCC806 CIR-100M: 100 Meter IR Camera
YCC806CIR-100M: 100 Meter IR Camera
Price:
$95.00
Promotion:
For Large Quantity Orders, Feel Free to Contact us at Anytime.
Description
Additional information
|
SPECIFICATION |
YCC806 CIR-100M |
|
EFFECTIVE PIXELS |
NTSC:510(H) X 492(V) |
|
HORIZONTAL |
380 TV LINES |
|
SCANNING FRENQUENCY |
NTSC: 525 LINE |
|
SYNC SYSTEM |
INTERNAL |
|
SIGNAL TO NOISE |
48dB |
|
GAMMA CORRECTION |
0.45 |
|
WITH BALANCE |
AUTO |
|
GAIN CONTROL |
AGE |
|
BLC |
NTSC:1/60-100000SEC |
|
ELECTRONIC SHUTTER |
1.0VP-P / 75OHM |
|
VIDEO OUTPUT (MM) |
3.6/6.0/8.0/ |
|
LENS |
80°/53°/ |
|
LENS VIEW ANGLE |
80°/40° |
|
IR DISTANCE |
100M |
|
SENSIVITY |
IR ON~0 LUX/IR OFF~1 LUX |
|
IR LED |
80PCS |
|
LED LIFE |
10000 HOURS |
|
IR WAVELENGTH |
850NM |
|
PROTECTION CLASS |
IP 66 CLASSIFICATION |
|
CONTROL TEMPERATURE |
BLOWER, HEATER |
|
TEMPERATURE |
-10°C ~+60°C |
|
POWER SUPPLY |
12VDC / 90~260VAC (50-60HZ) |
|
DIMENSION |
140 X 112 X 400MM |
