YCC1011AHD: 8 CH AHD 2MP XVR KIT

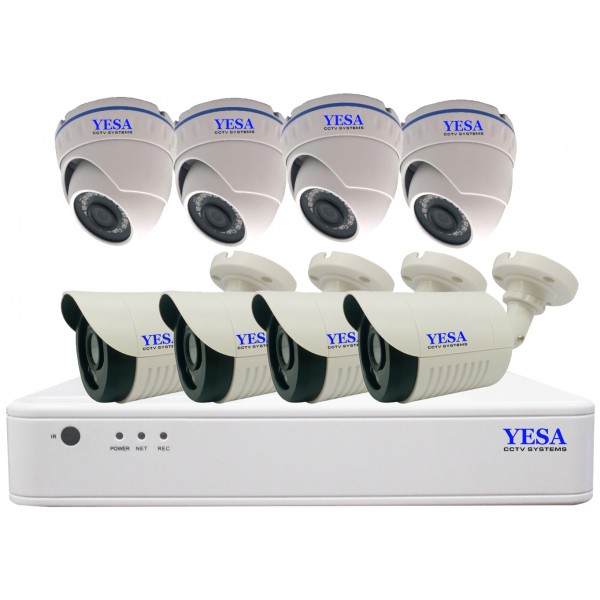

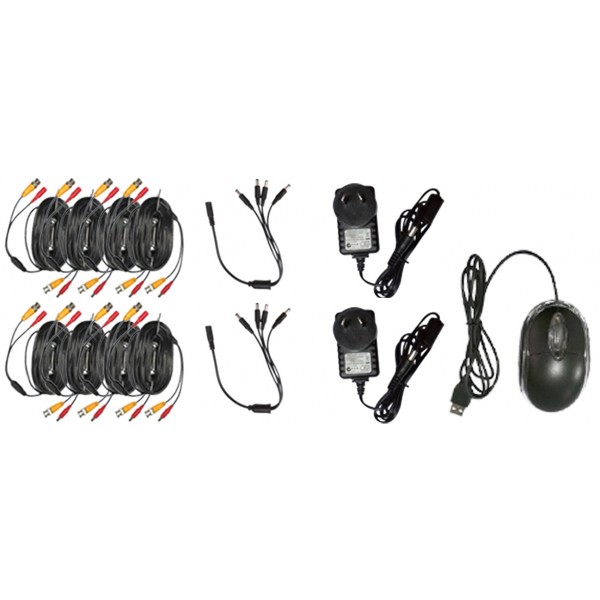

8CH AHD 2MP XVR KIT • 1x 8 Channels AHD XVR Metal Case 1080N | • 4x 2MP Outdoor Dome AHD IR 20m | • 4x 2MP Outdoor Bullet AHD IR 30m | • 8x 18M Coaxial Cable | • 2x 4CH Power Splitter Cable | • 4x DC12V/2A Power Adapter | • 1x USB Mouse

Price:

$650.00

Promotion:

For Large Quantity Orders, Feel Free to Contact us at Anytime.

Quantity:

Description

Additional information

Camera










Video Output Mode

AHD/CVI/TVI/CVBS


Image device

1/2.8" HD cmos


TV System

PAL/NTSC


Image Resolution

1080P


Effective Pixels

1920*1080


Scanning System

Progressive Scan


Synchronization

Internal


S/N Ratio

≥50dB


Lens


Focus Length

3.6mm MTV lens


OPERATIONAL


Day/Night

AUTOICR)


Backlight  Compensation

AUTO


Gain Control

AUTO


White Balance

AUTO / MANUAL


Electronic Shutter

1/25s~1/50,000s , 1/30s~1/60,000s


Infrared LED

18 SMD LEDs


Infrared Distance

10~20M


IR Status

Under 10 Lux by CDS


IR Power On

CDS Auto Control


Operation Temperature

-10 ~ +50 RH95% Max


Storage Temperature

-20 ~ +60 RH95% Max


Housing

domemetal &bulletplastic


Noise Reduction

3DNR


Picture Adjustment

YES


WDR

YES


OSD Support

YES


General


Power Source

DC12V±10%


XVR










CPU/AD

HI3520D(V300)+2826


Operation System

Embedded Linux


Video&Audio Input

Video Input

8CH



CVBSTVIAHDCVI Signal adaptive CampatibleAccess to the Optional IP Cameras


BNC Interface1.0Vp-p,75ohms


TVI4MP/AHD4MP/TVI3MP/AHD3MP/CVI3MP/TVI1080P/TVI720P/AHD1080P/AHD720P/CVI1080P/CVI720P/960H/D1


Support TVI/AHD Camera Reverse ControlUTC


Network Video

32Mbps



Up to 2048*1536@30FPS


Audio Input

1CHRCA interface (2Vpp,1Kohms)


Bidirectional Talk

1way voice intercom reuse


Video&Audio Output

CVBS Output

1CH,BNC Interface1.0Vp-p,75ohms



VGA

1CH,1920×1080,1280×1024,1366×768,1280×720,1024×768 Resolution Optional


HDMI

Standard 1.3a



1920×1080,1280×1024,1366×768,1280×720,1024×768 Resolution Optional


Audio Output

1CH,RCA Interface (Line out,2Vpp,300ohms)


Intelligent Analysis

1CH Face detection or 8CH Perimeter detection



Video Encoding




Encoding Resolution




Max Encoding Ability




Video Frame Rate




Encoding Control




Video Bit Rate




Stream Type




Audio Encoding




Audio Bit Rate




Dual stream




Video&Audio Decoding

Video Decoding

H.264 High Profile@Level4.2



Synchronous Playback

Up to 8CH


Max Decoding Ability

8CH 720P@25FPS or 4CH 1080P@12FPS


Other Function

Bidirectional Talk

Two-Way Voice Intercom Function



Motion Detection

Zones :396 (22×18)Detection Zones Variable Sensitivity Levels


Regional Block

Each Channel Support 4 Regional Block Pieces


Picture Capture

Support JPEG Capture


HDD

SATA

1 SATA interface



Max Capacity

Unlimited


External Interface

Network Interface

1RJ45;10M/100M adaptive Ethernet interface



USB

2USB*2.0 Interfaces


RS-485

N/A


Structure

Dimensions

250*235*45mm



Electrical Properties

Power

 DC +12V



Working Temperature

 0--55


Working Humidity

10--90


Consumption

6W(Without HDD)
