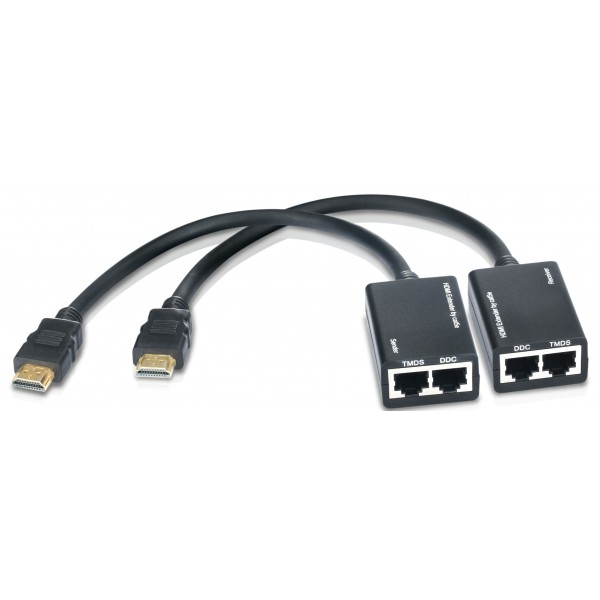

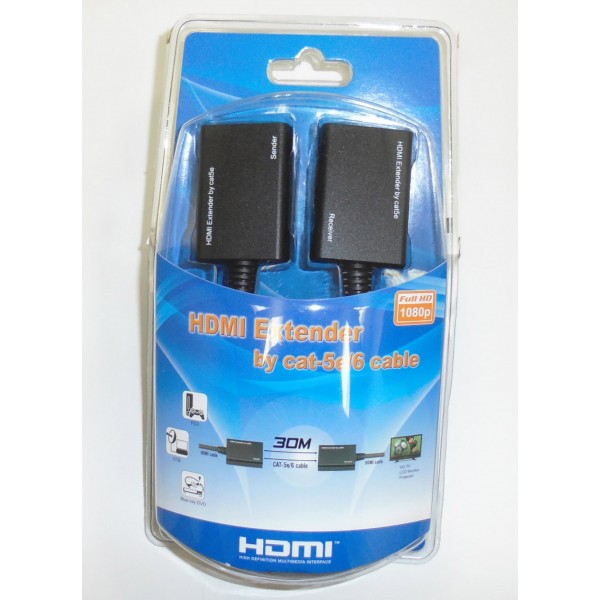

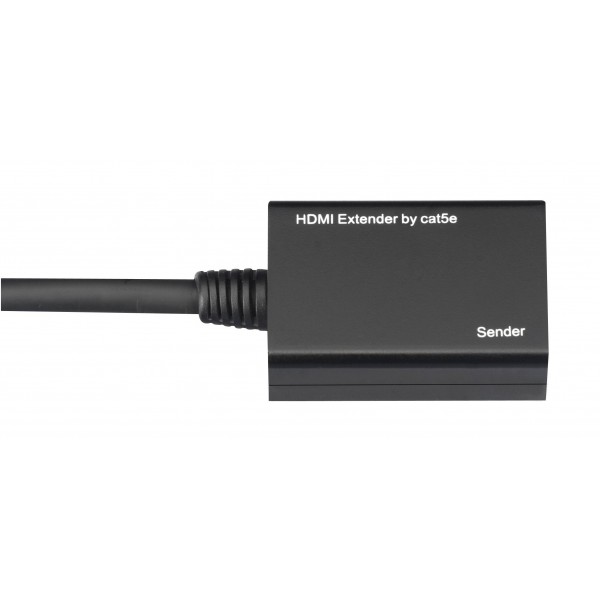

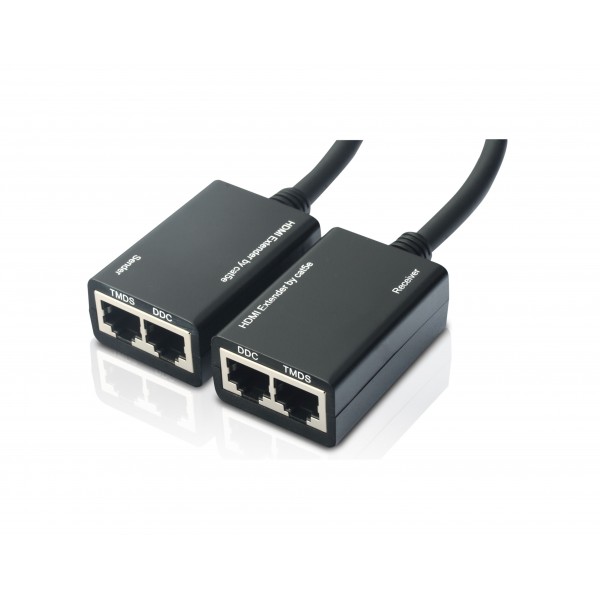

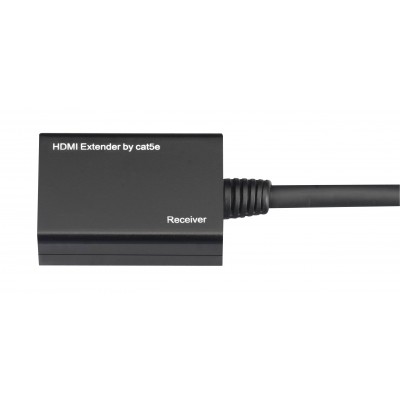

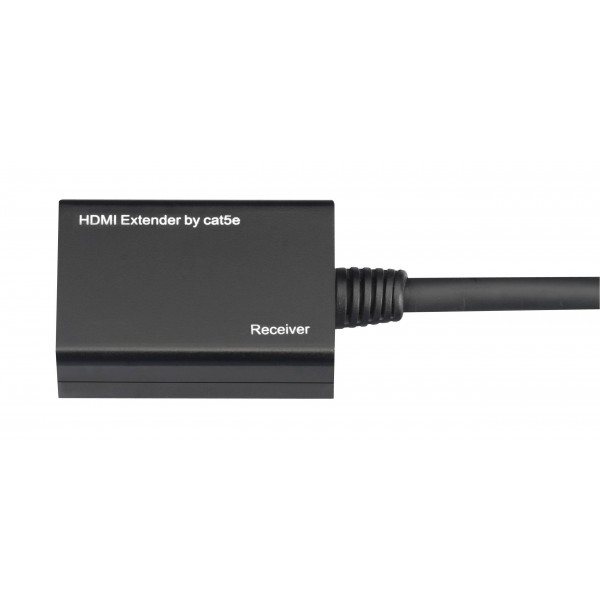

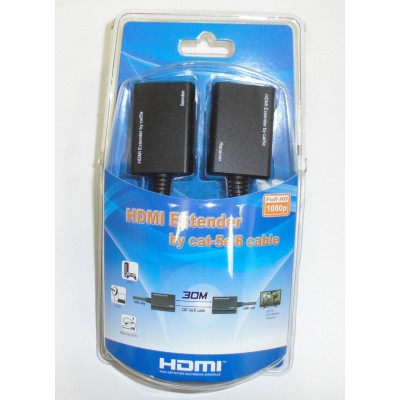

PRO2093-30P: 30M HDMI Extender By CAT5E/CAT6 Pigtail Type
30Meter HDMI Extender By CAT5E/CAT6 Pigtail Type
Price:
$59.90
Promotion:
For Large Quantity Orders, Feel Free to Contact us at Anytime.
Description
Additional information
Features:
-
HDMI Extender by CAT5E or CAT6
Transmission distance can be up to 30 meters for 1080p using UTP cable with cross stand inside
One pair as a full functional module, plug & play - CAT-5e/6 cable can substitute HDMI cable to achieve long distance transmission.
- Follow the standard of IEEE-568B.
- Compact size.
- Supports highest video resolution 1080p.
- Supports 165MHz/1.65Gbps per channel (4.95Gbps all channel) bandwidth.
- Supports 8bit per channel (24bit all channel) deep color.
- HDCP pass-through.
- Supports uncompressed audio such as LPCM
- Supports compressed audio such as DTS Digital, Dolby Digital（including DTS-HD and Dolby True HD）
- Support 3D all format, including 1080p@23.98/24Hz, 720p@59.94/60Hz/50Hz, bandwidth up to 165MHz
Specifications
|
Transmission Distance |
30M for 1080p |
|
Signal Inputs/Output |
|
|
MaximumSignalLinkRange |
1920X1080p |
|
Output Video |
HDMI |
|
Operating Frequency |
|
|
VerticalFrequencyRange |
50/60Hz |
|
Video Amplifier Bandwidth |
1.65Gbps/165MHz |
|
Resolutions(HDTV) |
|
|
Interlaced(50&60Hz) |
480i,576i,1080i |
|
Progressive(50&60Hz) |
480p,576p,720p,1080p |
|
Power Requirement |
|
|
External Power Supply |
5V DC@2A (optional) |
